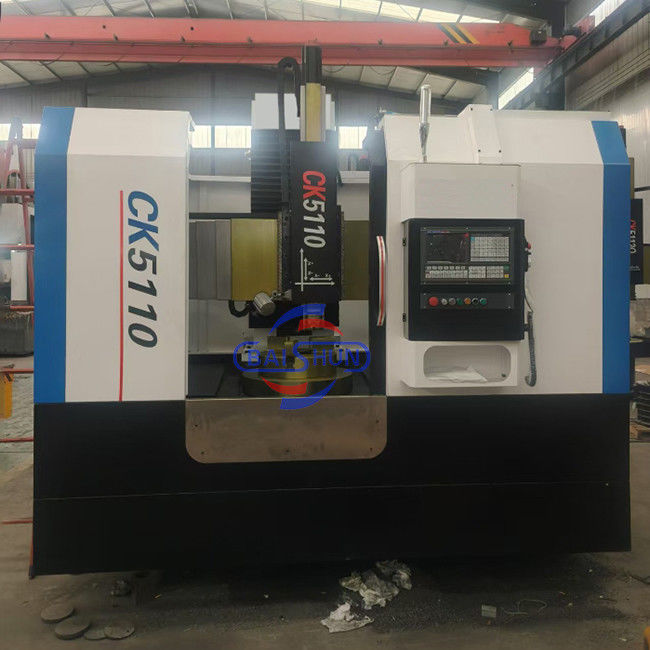

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic
Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic
Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic
Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic
Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic
Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5110

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Economic Price Vertical Turret Lathe Machine

,

Automatic Vertical Turret Lathe Machine

Product Name:
CNC Single Column Vertical Turret Lathe Machine Automatic
Machine Type:
CK5110
Max. Turning Diameter(mm):
1000
Max. Height Of Workpiece(mm):
800
Worktable Size(mm):
800
No. Of Spindles:
Single
Positioning Accuracy (mm):
±0.005
Voltage:
380V
Key Words:
Vertical Turret Lathe
Function:
Metal Turning
Product Name:
CNC Single Column Vertical Turret Lathe Machine Automatic
Machine Type:
CK5110
Max. Turning Diameter(mm):
1000
Max. Height Of Workpiece(mm):
800
Worktable Size(mm):
800
No. Of Spindles:
Single
Positioning Accuracy (mm):
±0.005
Voltage:
380V
Key Words:
Vertical Turret Lathe
Function:
Metal Turning
Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic:

China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

CNC VTL Vertical Turning Carousel Lathe

Main Features:

1. CNC vertical lathe, the CNC system can uses Siemens 808D system, Or also can choose GSK; KND;FANUC,etc, there is a vertical tool post, the maximum machining diameter can be 800mm to 2600mm of single column vertical lathe, For CK5112 type, it is designed with the table diameter of 1000mm, and the maximum machining height is 1000mm.

2. The transmission device is a four-speed sleepless transmission, which is convenient, sensitive and reliable.

3. Set in the system, all gears use 40Cr grinding gears, which have the characteristics of high rotation accuracy and low noise.

4. The machine is suitable for high speed steel tools and carbide cutting tool processing of non-ferrous metal, black metal and nonmetal materials. On the machine can complete the following processes:Turning the inner and outer cylindrical surface of the plane; all kinds of hook face , inner and outer cone face, thread, cutting slot and cutting.



Machine parameter

Model

CK518

CK5112Q

CK5112A

CK5116Q

CK5120A

CK5126A

Max. turning diameter of vertical tool rest (mm)

800

1200

1200

1600

2000

2600

Working table diameter (mm)

700

1000

1000

1400

1800

2200

Max. height of work-piece (mm)

800

1000

1000

1200

1250

1400

Max. weight of work-piece (kg)

1500

1500

3200

3200

8000

8000

Range of worktable rotation speed (rpm)

30-260

20-180

6.3-200

15-160

3.2-100

2.2-70

Feeding series

Stepless

Stepless

Stepless

Stepless

Stepless

Stepless

Range of tool rest feed (mm/min)

0.25-90

0.25-90

0.8-86

0.25-90

0.8-86

0.8-86

Cross beam travel (mm)

500

1000

650

1200

890

1090

Horizontal travel of tool rest (mm)

500

700

700

900

1115

1400

Vertical travel of tool rest (mm)

450

500

650

750

800

800

Size of section of cutter bar (mm)

30*40

30*40

30*40

30*40

30*40

30*40

Main motor power (kw)

11

15

22

15

30

30



Detail Machine Photo:

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic 0

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic 1







Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic 2



Shipping and Delivering:

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic 3

For more details and specifications, please contact:

Economic Price CK5110 CNC Single Column Vertical Turret Lathe Machine Automatic 4
