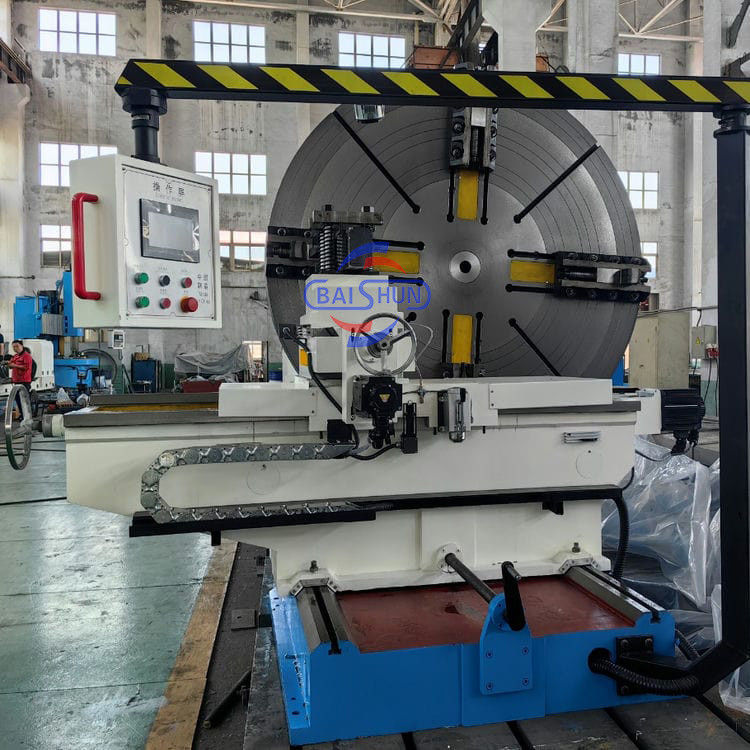

Customized Facing Lathe Machine For Machining Aluminum Mold Flange Lathe

Outstanding Characteristics of horizontal lathe

All components of machine are imported foreign famous brands, such as FANUC or SIMENS Control System/ Schneider Electrical Control system, Japanese Bearing, ABB Motor& transmission box/gear box, etc. With more than 50 years' experience that our company was established in 1969 as a military enterprise. We are specialized in re-designing and manufacturing customized lathe machines per customer's special requests and demands. This is our special characteristics which makes us separate from other competitors.

1.) It has functions including screw thread, conical surface, curved surface, internal boring, etc.

2.) This lathe adopts frequency control system as its main drive system; driven by frequency control motor, the speed of main-shaft realizes stepless speed regulating, thus having different speeds to meet rational cutting speed requirements for the machining of different type of work-piece.

3.) This lathe consists of lathe bed, selective headstock, tailstock, blade adapter, electric control system, lubrication system, and so on. Selective headstock and tailstock are installed at the left and right side of lathe bed respectively.

4.) The main shaft can realize stepless speed regulating in a range of 10~300r/min; and the main spindle front bearing adopts high-precision double row cylindrical roller bearings, having high-degree of rigidity and rotary precision and easy to adjust.

5.) High Rigidity, Stability and Precision Maintenance: All castings are made of high-strength meehanite HT250. which is particularly suitable for heavy cutting. All large castings stand the test of annealing and vibration aging and internal stress is eliminated, so the overall precision is greatly enhanced and processed parts are found with high geometric accuracy.

Our Principle : Maximize Customer's Profitability under the minimum invest cost.
