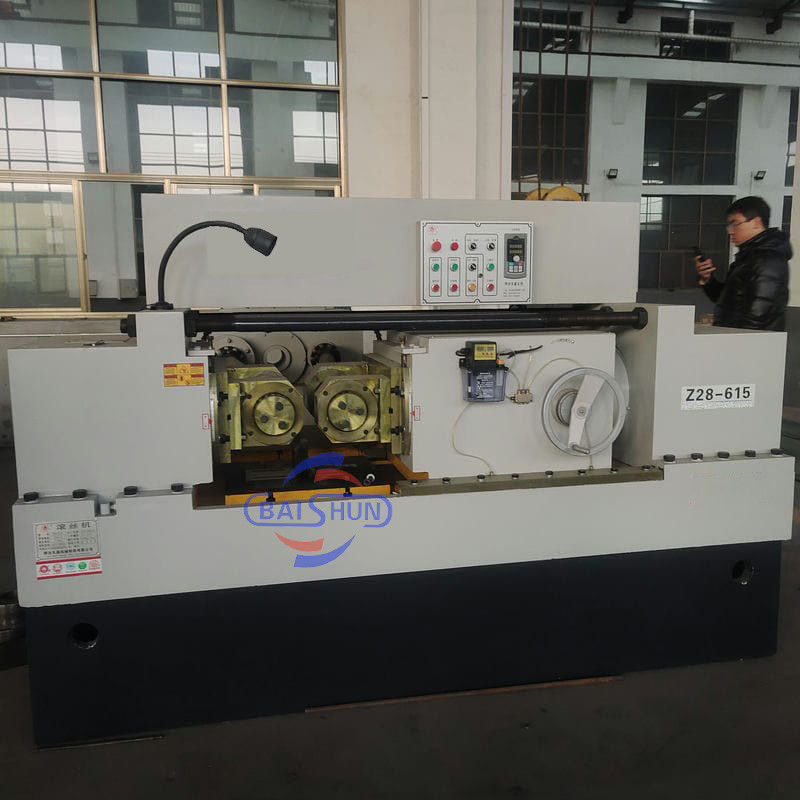

Economic Hydraulic Screw Making Automatic Thread Rolling Machine
Economic Hydraulic Screw Making Automatic Thread Rolling Machine
Economic Hydraulic Screw Making Automatic Thread Rolling Machine
Economic Hydraulic Screw Making Automatic Thread Rolling Machine
Economic Hydraulic Screw Making Automatic Thread Rolling Machine
Economic Hydraulic Screw Making Automatic Thread Rolling Machine
Economic Hydraulic Screw Making Automatic Thread Rolling Machine

Economic Hydraulic Screw Making Automatic Thread Rolling Machine

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO CE

Model Number: Z28-150

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD4600-6900/SET

Packaging Details: export standard wooden case

Delivery Time: within 20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50SETS/Month

Get Best Price

Product Details

Product Description
Highlight:

Hydraulic Screw Making Thread Rolling Machine

,

Economic Price Thread Rolling Machine

,

Automatic Thread Rolling Machine

Product Name:
Automatic Thread Rolling Machine
Type:
Z28-150
Roller Diameter:
5-56mm
Thread Range:
0.5-8mm
Inner Diameter Of Roller Wheel:
54mm
Roller Die:
Customized
Power:
7.5kw
Color:
Blue And Gray
Delivery:
Fast Delivery
Product Name:
Automatic Thread Rolling Machine
Type:
Z28-150
Roller Diameter:
5-56mm
Thread Range:
0.5-8mm
Inner Diameter Of Roller Wheel:
54mm
Roller Die:
Customized
Power:
7.5kw
Color:
Blue And Gray
Delivery:
Fast Delivery
Economic Hydraulic Screw Making Automatic Thread Rolling Machine

Economic Price Hydraulic Screw Making Automatic Thread Rolling Machine



Description:

This machine ensures efficient and rapid thread rolling, meeting the demands of high-volume manufacturing environments. It is an ideal solution for high-quality thread rolling capabilities.



The thread rolling machine is a machine tool that forms threads on a workpiece through pressure. It mainly achieves thread, straight thread, oblique thread and other processing by rolling the workpiece in a cold state.



The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and diagonal rolling on the workpiece in the cold state within its rolling force range; straight tooth, helical tooth and helical spline gear Rolling; straightening, diameter reduction, roller burnishing and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected among three modes: manual, semi-automatic and automatic.

The thread rolling cold rolling process is an advanced non-cutting process that can effectively improve the intrinsic and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. An ideal process with high efficiency, energy saving and low consumption.

Economic Hydraulic Screw Making Automatic Thread Rolling Machine 0



Technical Specifiction:

Model Z28-150B
Roller Diameter(mm) 5-56
Dia.of roller wheel 120-170
Inner dia.of roller wheel(mm) 54
Width of wheel(mm) 100
Max.feeding force(kn) 160
Rotation speed of two main axis(r/m) 37;46;63;79
Max.tilt angle(°) ±5
Hydraulic cease time regulation scope(s) 0.1-99.9
Main motor(kw) 7.5
Hydraulic motor(kw) 2.2
Machine size(mm) 1800x1650x1450
Machine weight(kg) 2800



More Details:

Economic Hydraulic Screw Making Automatic Thread Rolling Machine 1

Economic Hydraulic Screw Making Automatic Thread Rolling Machine 2Economic Hydraulic Screw Making Automatic Thread Rolling Machine 3Economic Hydraulic Screw Making Automatic Thread Rolling Machine 4Economic Hydraulic Screw Making Automatic Thread Rolling Machine 5



Contact:

Economic Hydraulic Screw Making Automatic Thread Rolling Machine 6
