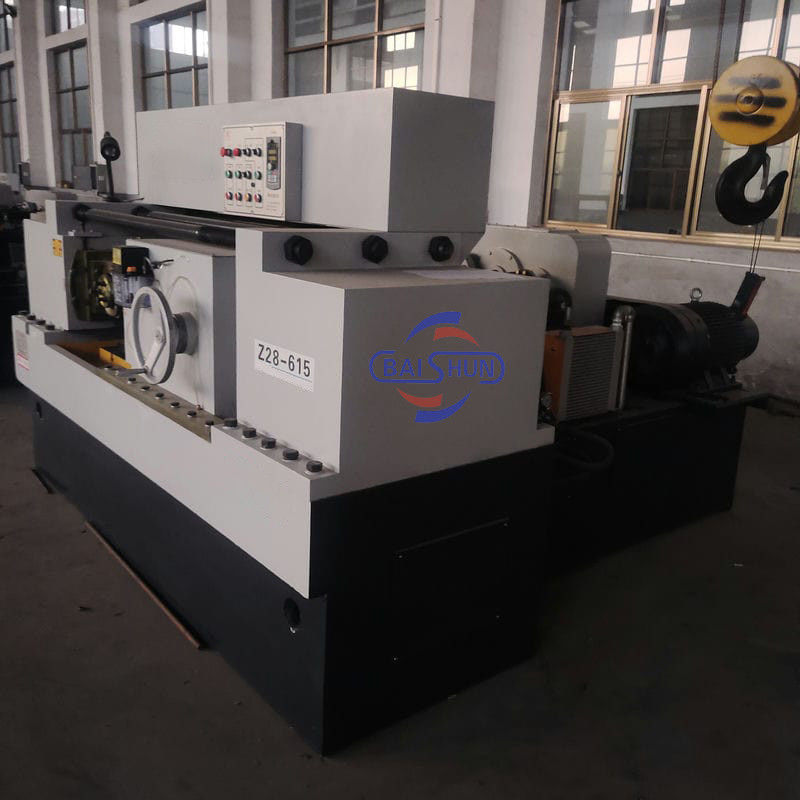

Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine

Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO CE

Model Number: Z28-215

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD8600-11000/SET

Packaging Details: export standard wooden case

Delivery Time: within 20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50SETS/Month

Get Best Price

Product Details

Product Description
Highlight:

Hydraulic Stud Bolt Screw Making Machines

,

Steel Thread Rolling Machine

Product Name:
Steel Thread Rolling Machine
Type:
Z28-215
Roller Diameter:
8-100mm
Thread Range:
0.5-8mm
Inner Diameter Of Roller Wheel:
75mm
Roller Die:
Customized
Power:
11kw
Color:
Blue And Gray
Delivery:
Fast Delivery
Product Name:
Steel Thread Rolling Machine
Type:
Z28-215
Roller Diameter:
8-100mm
Thread Range:
0.5-8mm
Inner Diameter Of Roller Wheel:
75mm
Roller Die:
Customized
Power:
11kw
Color:
Blue And Gray
Delivery:
Fast Delivery
Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine

Hot Sale Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine



Description:

This machine ensures efficient and rapid thread rolling, meeting the demands of high-volume manufacturing environments. It is an ideal solution for high-quality thread rolling capabilities.



The thread rolling machine is a machine tool that forms threads on a workpiece through pressure. It mainly achieves thread, straight thread, oblique thread and other processing by rolling the workpiece in a cold state.



The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and diagonal rolling on the workpiece in the cold state within its rolling force range; straight tooth, helical tooth and helical spline gear Rolling; straightening, diameter reduction, roller burnishing and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected among three modes: manual, semi-automatic and automatic.



Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 0



Technical Specification:

Model Z28-215
Roller Diameter(mm) 8-100
Thread range(mm) 0.5-8
Inner dia.of roller wheel(mm) 75
Width of wheel(mm) 50-120
Dia.of roller wheel 170-220
Max.feeding force(kn) 300
Rotation speed of two main axis(r/m) 26;35;48;62
Hydraulic cease time regulation scope(s) 0.1-99.9
Main motor(kw) 11
Hydraulic motor(kw) 5.5
Machine size(mm) 2100x1850x1550
Machine weight(kg) 3800



More Details:

Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 1

Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 2

Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 3Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 4Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 5Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 6



Contact:

Hydraulic Stud Bolt Screw Making Machines Steel Thread Rolling Machine 7
