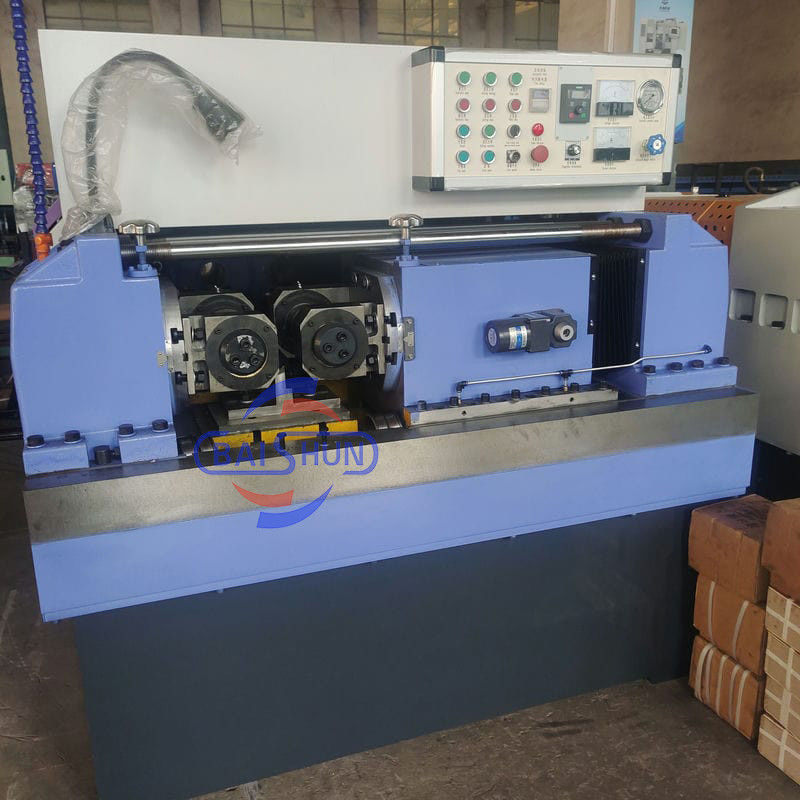

Construction Material Making Machinery Bolt Thread Rolling Machine
Construction Material Making Machinery Bolt Thread Rolling Machine
Construction Material Making Machinery Bolt Thread Rolling Machine
Construction Material Making Machinery Bolt Thread Rolling Machine
Construction Material Making Machinery Bolt Thread Rolling Machine
Construction Material Making Machinery Bolt Thread Rolling Machine
Construction Material Making Machinery Bolt Thread Rolling Machine

Construction Material Making Machinery Bolt Thread Rolling Machine

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO CE

Model Number: Z28-315

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD8600-11000/SET

Packaging Details: export standard wooden case

Delivery Time: within 20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 50SETS/Month

Get Best Price

Product Details

Product Description
Highlight:

Bolt Thread Rolling Machine

,

Construction Material Bolt Thread Rolling Machine

,

Bolt Thread Rolling Machine

Product Name:
Bolt Thread Rolling Machine
Type:
Z28-315
Roller Diameter:
8-110mm
Thread Range:
0.5-8mm
Inner Diameter Of Roller Wheel:
75mm
Roller Die:
Customized
Power:
15kw
Color:
Blue And Gray
Delivery:
Fast Delivery
Product Name:
Bolt Thread Rolling Machine
Type:
Z28-315
Roller Diameter:
8-110mm
Thread Range:
0.5-8mm
Inner Diameter Of Roller Wheel:
75mm
Roller Die:
Customized
Power:
15kw
Color:
Blue And Gray
Delivery:
Fast Delivery
Construction Material Making Machinery Bolt Thread Rolling Machine

China Construction Material Making Machinery Bolt Thread Rolling Machine



Description:

The thread rolling machine is a machine tool that forms threads on a workpiece through pressure. It mainly achieves thread, straight thread, oblique thread and other processing by rolling the workpiece in a cold state.



The thread rolling machine is a multifunctional cold extrusion forming machine tool. The thread rolling machine can perform thread, straight and diagonal rolling on the workpiece in the cold state within its rolling force range; straight tooth, helical tooth and helical spline gear Rolling; straightening, diameter reduction, roller burnishing and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system, which allows each working cycle to be selected among three modes: manual, semi-automatic and automatic.

The thread rolling cold rolling process is an advanced non-cutting process that can effectively improve the intrinsic and surface quality of the workpiece. The radial compressive stress generated during processing can significantly improve the fatigue strength and torsional strength of the workpiece. An ideal process with high efficiency, energy saving and low consumption.



Construction Material Making Machinery Bolt Thread Rolling Machine 0



Technical Specification:

Model Z28-315
Roller Diameter(mm) 8-110
Thread range(mm) 0.5-8
Inner dia.of roller wheel(mm) 75
Width of wheel(mm) 50-120
Dia.of roller wheel 170-220
Max.feeding force(kn) 300
Rotation speed of two main axis(r/m) 26;35;48;62
Hydraulic cease time regulation scope(s) 0.1-99.9
Main motor(kw) 15
Hydraulic motor(kw) 5.5
Machine size(mm) 2150x1800x1600
Machine weight(kg) 4500



More Details:

Construction Material Making Machinery Bolt Thread Rolling Machine 1

Construction Material Making Machinery Bolt Thread Rolling Machine 2Construction Material Making Machinery Bolt Thread Rolling Machine 3Construction Material Making Machinery Bolt Thread Rolling Machine 4Construction Material Making Machinery Bolt Thread Rolling Machine 5

Construction Material Making Machinery Bolt Thread Rolling Machine 6



Contact:

Construction Material Making Machinery Bolt Thread Rolling Machine 7
