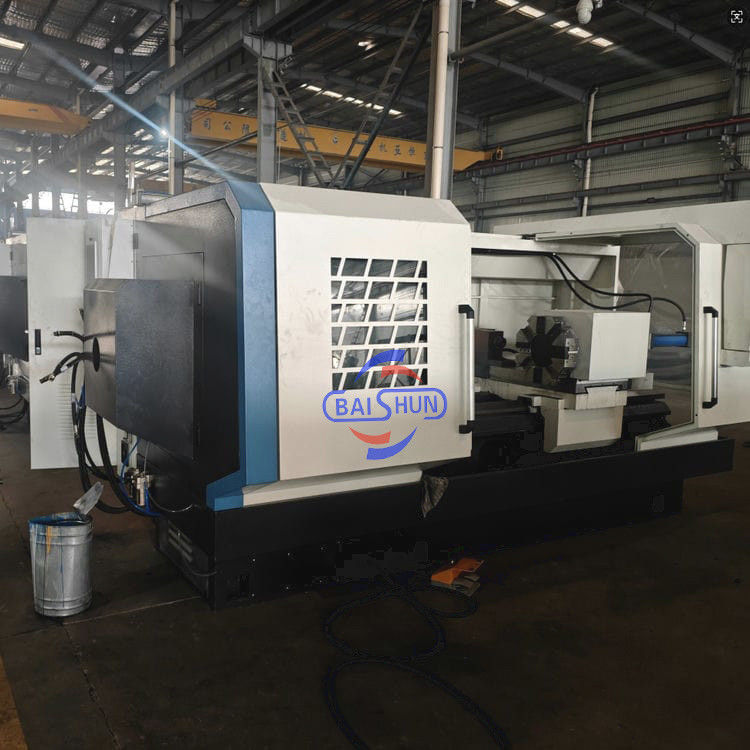

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: QK1335

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 48000-61000/Set

Packaging Details: Pallet and wooden case package

Delivery Time: within 45days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20/month

Get Best Price

Product Details

Product Description
Highlight:

Big Bore Pipe Threading Lathe

,

CNC Oil Country Pipe Threading Lathe

,

QK1335 QK1365 Pipe Threading Lathe

Product Name:
CNC Oil Country Pipe Threading Lathe
Model:
QK1335
Max. Swing Diameter Over Bed:
1000mm
Max.threading Diameter:
350mm
Spindle Bore:
360mm
Width Of Bed:
755mm
Key Words:
CNC Pipe Threading Lathe
Function:
Pipe Screw Cutting
Power:
22KW
Machine Weight:
12Tons
Product Name:
CNC Oil Country Pipe Threading Lathe
Model:
QK1335
Max. Swing Diameter Over Bed:
1000mm
Max.threading Diameter:
350mm
Spindle Bore:
360mm
Width Of Bed:
755mm
Key Words:
CNC Pipe Threading Lathe
Function:
Pipe Screw Cutting
Power:
22KW
Machine Weight:
12Tons
QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe

Factory Directly Supply QK1353 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe



Product Description:

The QK series CNC pipe threading machine is a high efficiency, high precision two coordinate continuous control CNC machine, Which independently researched and developed by our company according to the development needs of petroleum industry. The machine has high power, good rigidity, can cut straight, oblique, arc, male, inch thread, and has a variety of functions such as tip radius compensation. The machine features high rigidity and high power. It is a high precision and high efficiency pipe thread machining machine. The machine adopts a high transmission ratio gearbox and a high power AC main drive motor, which enables the spindle to achieve up to 3080Nm of output torque. After finishing the outer thread, machining the inner thread directly. Improve the processing efficiency.



Features:

1.Machine: mechanical and electrical integration design, advanced structure, reasonable layout, beautiful shape, the use of integral bed, good rigidity and stability; Machine automatic lubrication system.
2.Spindle: The spindle bearing adopts GRADE P5 bearing; Spindle rotation jump ≤0.01mm, stable accuracy.
3.Tool rest: The tool rest adopts Shenyang electric tool rest, the locking force can reach 28KN.
4.Movement: the X/Z axis of the machine adopts ball screw pair produced by Shandong, which has good movement accuracy and dynamic characteristics.
5.System: GSK is standard, And optional: SIEMENS; FANUC; etc.,
6.Headstock: the variable speed structure of the headstock of this series of machine adopts manual shift.

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe 0





Technical specification:

Model Unit QK1325 QK1327 QK1332 QK1335 QK1353 QK1363
CNC System /

Standard configuration:GSK980TDi

Optional: FANUC; SIMENS;KND;etc.
Max dia.swing over bed mm 800 800 800 1000 1250 1400
Max dia.swing over cross slide mm 480 480 480 610 860 950
Maxlength of work-piece mm 1500 1500 1500 1500 1500 1500
Pipe threading range mm 70-250 70-275 80-320 150-350 350-525 450-625
Width of bed mm 600/650 755 755 755 755 755
Spindle bore mm 255 280 325 360 540 640
Spindle center height mm 400 400 400 500 625 700
Power of spindle motor mm 11 15 15 22 30 30
Mode of spindle speed / Two gears , step less in gears
Range of spindle speed r/min

(L):15-100

(H):100-350

(L):20-100

(H):100-300

(L):20-130

(H):100-300

(L):30-130

(H):65-260

(L):20-80

(H):55-220

(L):15-65

(H):65-120
Max.traverse of X/Z mm

X:420

Z:1250

X:420

Z:1250

X:420

Z:1250

X:450

Z:1250

X:650

Z:1250

X:750

Z:1250
X/Z rapid traverse mm/min 4000/5000 4000/5000 4000/5000 4000/5000 4000/5000 4000/5000
Tailstock quill Diameter mm 100 100 100 160 160/260 160/260
Travel mm 250 250 250 300 300 300
Taper   Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6
Turret Model   HAK21240 HAK21300 SLD170A04N SLD170A04N SLD170A04N SLD170A04N
No.of tool stations   Vertical four-station
Dimension of tool mm 32x32 32x32 32x32 32x32 32x32 32x32
Turret indexing time s 2.6 2.6 5.6 5.6 5.6 5.6
Chuck   K11-500 three jaw chuck K72-780 four jaw chuck K72-780 four jaw chuck K66-780 four jaw electric chuck K66-780 four jaw electric chuck K66-780 four jaw electric chuck
Positioning accuracy mm 0.020 0.020 0.020 0.020 0.040 0.040
Repositioning accuracy mm 0.01 0.01 0.01 0.01 0.02 0.02
Machine weight T 6.5/7.2 8 10 10 18 19



Machine Details:

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe 1

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe 2

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe 3



Packing and delivery:

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe 4



For more details and specifications, please contact:

QK1335 QK1365 Big Bore CNC Oil Country Pipe Threading Lathe 5
