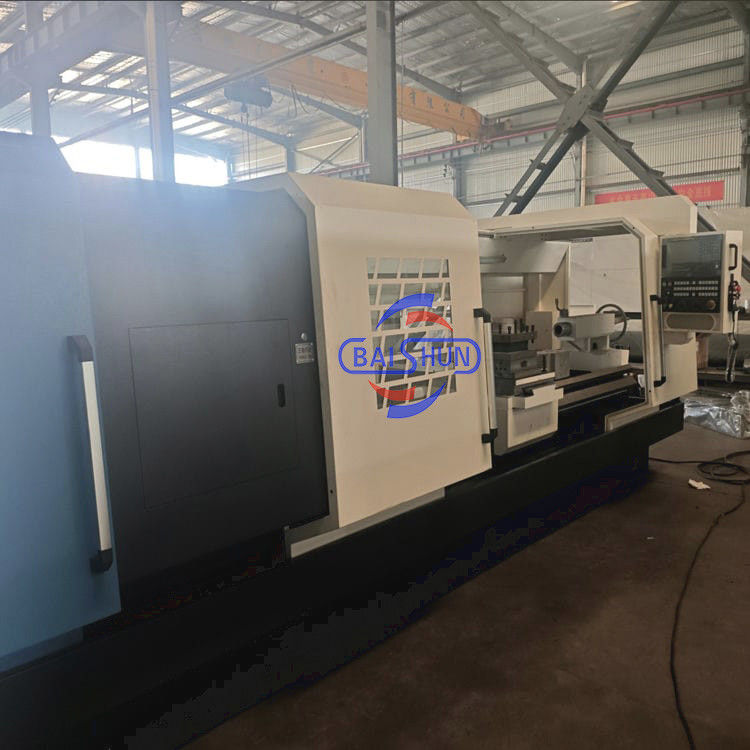

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: QK1332

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 45000-58000/Set

Packaging Details: Pallet and wooden case package

Delivery Time: within 45days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20/month

Get Best Price

Product Details

Product Description
Highlight:

Automated Thread Cutting CNC Lathe

,

QK1332 Thread Cutting CNC Lathe

,

Oil Pipe Threading Machine

Product Name:
Pipe Threading Machine For Oil Pipe
Model:
QK1332
Max. Swing Diameter Over Bed:
800mm
Max.threading Diameter:
320mm
Spindle Bore:
325mm
Width Of Bed:
755mm
Key Words:
Pipe Threading Machine
Function:
Screw Cutting
Power:
15
Machine Weight:
10Tons
Product Name:
Pipe Threading Machine For Oil Pipe
Model:
QK1332
Max. Swing Diameter Over Bed:
800mm
Max.threading Diameter:
320mm
Spindle Bore:
325mm
Width Of Bed:
755mm
Key Words:
Pipe Threading Machine
Function:
Screw Cutting
Power:
15
Machine Weight:
10Tons
QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe

QK1332 China Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe



Product Description:

CNC pipe threading machine is a high efficiency, high precision two coordinate continuous control CNC machine independently researched and developed according to the development needs of petroleum industry. The machine has high power, good rigidity, can cut straight, oblique, arc, male, inch thread, and has a variety of functions such as tip radius compensation. The machine features high rigidity and high power. It is a high precision and high efficiency pipe thread machining machine.



This machine can be used for rough machining and finishing machining of mechanical parts, especially suitable for petroleum, mining, machinery and other industries, for high-efficiency, high-volume and high-precision processing of rotary parts.
The machine can process steel, cast iron, non-ferrous metals and other materials.
This machine is also suitable for turning and processing of cylindrical surface, conical surface, thread, drilling, reaming, curve turning body and other parts of shaft and disk parts in small and medium batches. The machining accuracy is up to IT7 and the surface roughness of the machined work piece is up to Ra1.6.



Features:

1. Big spindle bore and double chuck to ensure process big diameter pipe.
2. One-piece bed adopts high strength casting iron to ensure rigidity and precision.
3. Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
4. Surface of carriage and guide way with high accuracy.

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe 0





Technical specification:

Model Unit QK1325 QK1327 QK1332 QK1335 QK1353 QK1363
CNC System /

Standard configuration:GSK980TDi

Optional: FANUC; SIMENS;KND;etc.
Max dia.swing over bed mm 800 800 800 1000 1250 1400
Max dia.swing over cross slide mm 480 480 480 610 860 950
Maxlength of work-piece mm 1500 1500 1500 1500 1500 1500
Pipe threading range mm 70-250 70-275 80-320 150-350 350-525 450-625
Width of bed mm 600/650 755 755 755 755 755
Spindle bore mm 255 280 325 360 540 640
Spindle center height mm 400 400 400 500 625 700
Power of spindle motor mm 11 15 15 22 30 30
Mode of spindle speed / Two gears , step less in gears
Range of spindle speed r/min

(L):15-100

(H):100-350

(L):20-100

(H):100-300

(L):20-130

(H):100-300

(L):30-130

(H):65-260

(L):20-80

(H):55-220

(L):15-65

(H):65-120
Max.traverse of X/Z mm

X:420

Z:1250

X:420

Z:1250

X:420

Z:1250

X:450

Z:1250

X:650

Z:1250

X:750

Z:1250
X/Z rapid traverse mm/min 4000/5000 4000/5000 4000/5000 4000/5000 4000/5000 4000/5000
Tailstock quill Diameter mm 100 100 100 160 160/260 160/260
Travel mm 250 250 250 300 300 300
Taper   Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6 Morse NO.6
Turret Model   HAK21240 HAK21300 SLD170A04N SLD170A04N SLD170A04N SLD170A04N
No.of tool stations   Vertical four-station
Dimension of tool mm 32x32 32x32 32x32 32x32 32x32 32x32
Turret indexing time s 2.6 2.6 5.6 5.6 5.6 5.6
Chuck   K11-500 three jaw chuck K72-780 four jaw chuck K72-780 four jaw chuck K66-780 four jaw electric chuck K66-780 four jaw electric chuck K66-780 four jaw electric chuck
Positioning accuracy mm 0.020 0.020 0.020 0.020 0.040 0.040
Repositioning accuracy mm 0.01 0.01 0.01 0.01 0.02 0.02
Machine weight T 6.5/7.2 8 10 10 18 19



Machine Details:

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe 1

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe 2

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe 3



Packing and delivery:

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe 4



For more details and specifications, please contact:

QK1332 Automated Thread Cutting CNC Lathe Pipe Threading Machine For Oil Pipe 5
