Cnc Benchtop Planer Universal Boring And Milling Machine With Angle Head Milling

Cnc Benchtop planer Universal Boring And Milling Machine With Angle Head Milling

The machine base is designed in a T-shape, providing high rigidity and multiple support points. It includes compound guide rails with load-relief mechanisms and robust roller linear guideways.

The spindle box is fully enclosed, and the Y-axis includes a rotating nut for strokes greater than 2000mm. Each feed axis is powered by high-precision, preloaded double-nut ball screw pairs. The main drive system and square slide operate synchronously, delivering high speed, low noise, and substantial torque. The counterweight balance system utilizes imported wire ropes and features an advanced, unique balance suspension point.

Additional features include the capability to integrate a coolant system through the spindle, a high-pressure unit, an automatic tool magazine for tool changes, and options for automatic grabbing and indexing accessory heads.

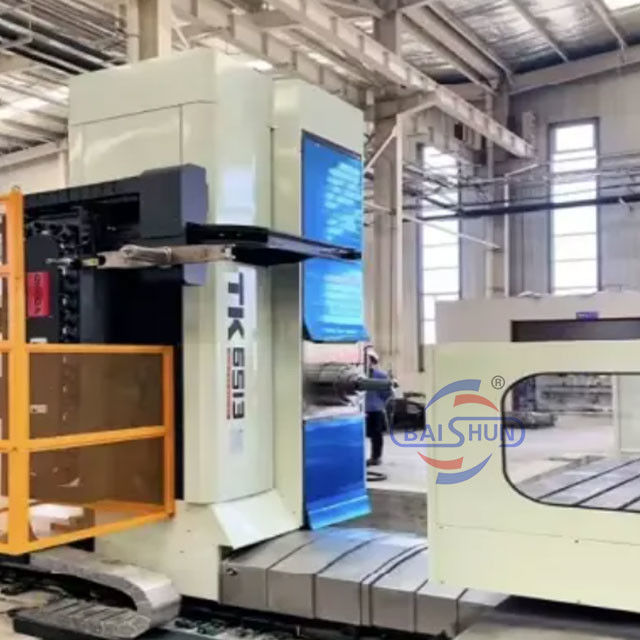

TK65 CNC Planer type boring and milling machine:

Item	Unit	TK6511	TK6513	TK6516
Spindle diameter	mm	110	130	160
Spindle taper		ISO 50	ISO 50	ISO 50
Max. spindle speed	rpm	10-2000	2-2000	2-1500
Motor power-Servo	KW	17/22.5	22/30	30/40
Table loading capacity	Kg	6000	10000	20000
Table size	mm	1200*1400 1400*1600	1400*1600 1600*1800	1400*1600 1600*1800 1800*2000
Cross travel of table -X axis	mm	2000(op: 3m, 4m)	2000(op: 4m, 5m)	2500(op: 4m,5m)
Vertical travel of spindle head stock-Y axis	mm	1500(op: 2m, 3m)	2000(op: 3m, 4m)	2000(op: 3m, 4m)
Longitude travel of spindle-Z axis	mm	600	800	1000
Travel of column-V axis	mm	1200	1600	1600
Table rotary indexing-B axis	°	360	360	360
Travel speed of table X	mm/min	5000	0.5-6000	0.5-6000
Tool magazine	pcs	40/60	40/60	40/60

FAQ

1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 2 months - 4 months. You can send us a message or mail to check exact delivery time.Our manufactory is very high degree of modernization, brand positioning the global market,


3. Whether to provide quality assurance and complete after-sales support?
A : Yes!Our machine is guaranteed for 12 months and supports
on-site installation if necessary.Commissioning, technical guidance and after-sales maintenance support.

4. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;

5. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)

6. How is the warranty?
A: Our machine is guaranteed for 12 months and supports
on-site installation if necessary.
Commissioning, technical guidance and after-sales maintenance support.

7. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
