Cnc Boring Milling Machine Supplier Vertical Universal Milling Machine

Product Details

Place of Origin: China

Brand Name: BAISHUN MACHINERY

Certification: ISO

Model Number: TK6913

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiable

Packaging Details: 1. Outside we will pack the product with plastic to prevent wet. 2. Outside of the machine will be packed by strong wooden pallet. 3. If there requirement of the package, we can customized based on the detail requirement.

Delivery Time: 4 month

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10 Set/Sets per Month

Get Best Price
Highlight:

Cnc Boring Milling Machine

,

Vertical Universal Milling Machine

,

Universal Milling Machine

Product Name:
Factory Price Cnc Boring Milling Machine Supplier Universal Milling Machine
Type:
TK6913
Spindle Bore:
130mm
RAM Size:
380X420
Table Loading Capacity:
10000kg-40000kg
Function:
Boring And Milling
Max. Spindle Speed:
1500rpm(Op:3000)
Color:
Customization
Product Name:
Factory Price Cnc Boring Milling Machine Supplier Universal Milling Machine
Type:
TK6913
Spindle Bore:
130mm
RAM Size:
380X420
Table Loading Capacity:
10000kg-40000kg
Function:
Boring And Milling
Max. Spindle Speed:
1500rpm(Op:3000)
Color:
Customization
Cnc Boring Milling Machine Supplier Vertical Universal Milling Machine

Factory Price Cnc Boring Milling Machine Supplier Vertical Universal Milling Machine



Structural performance

The machine tool has enough power and rigidity to meet the requirements of powerful milling: it has three feeds of X, Y, and W.The feeds in the X and Y directions have digital displays and clamping devices. It is a kind of excellent performance and process range. A wide range of advanced equipment with high precision and high production efficiency can completely replace planer and floor boring machines; this machine tool can complete drilling, reaming, boring, groove cutting and plane milling in one clamping.In addition, it can also perform High-precision hole processing; it is an indispensable processing equipment for heavy machinery, construction machinery, rolling stock, mining equipment, large motors, water turbines, steam turbines, ships, steel, military and other industrial sectors.

Cnc Boring Milling Machine Supplier Vertical Universal Milling Machine 0

TK69 CNC Floor type boring and milling lathe machine:

Item Unit TK6913 TK6916 TK6920 TK6926
Spindle diameter mm 130 160 200 260
Spindle taper ISO 50 50 60 60
Max. spindle speed rpm 1500(Op:3000) 1200(Op:2000) 1000(Op:2000) 1000O(op:1500)
Motor power-Servo KW 30 55 75 110
Total travel of boring spindle and ram mm 1500 2400 2400 3200
Size of ram section mm 380*420 480*520 480*520 620*740
Travel of column -X axis mm 4000(op:5-15m) 6000(op:7-20m) 6000(op:7-20m) 8000(op:9-20m)
Vertical travel of spindle head-Y axis mm 2000(op: 3m) 3000(op: 4m, 5m) 3000(op: 4m, 5m) 3000(op: 4m, 5m)
Longitude travel of cloumn-Z axis mm 700 1200 1200 1600
Axial travel of boring spindle-W axis mm 800 1200 1200 1600
B axis totation degree ° 360
Tool magazine pcs 40/60 40/60 40/60 40/60
Worktable size mm 1200*1400, 1400*1600, 1600*1800, 1800*2000, 2000*2500, 2500*3000, 3000*3500, 3500*4000, 4000*4500, 4500*5000(can be customized)

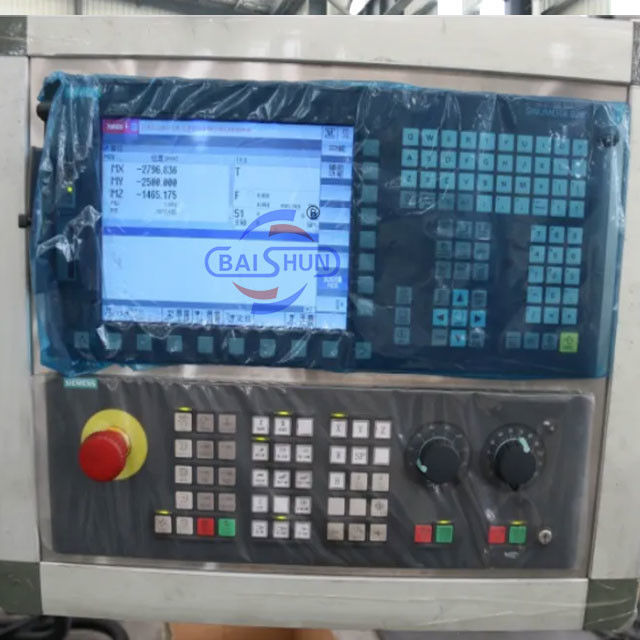

CNC System   SIEMENS / FANUC (can supply based on customers' requirement)

TK68 CNC Planer type boring and milling machine:

Item Unit TK6813 TK6816
Spindle diameter mm 130 160
Spindle taper   ISO 50 ISO 50
Max. spindle speed rpm 2-1500 2-1000
Motor power-Servo KW 22/30 30/40
Table loading capacity Kg 10000-40000 20000-60000
Table size mm 1400*1600 1600*1800
1800*2000 2000*2500
1400*1600 1600*1800
1800*2000 2000*2500 2500*3000
Cross travel of table -X axis mm 3000(op: 4m, 5m) 4000(op: 4m,5m)
Vertical travel of spindle head stock-Y axis mm 2000(op: 3m, 4m) 2000(op: 3m, 4m)
Longitude travel of spindle-Z axis mm 700 1000
Travel of column-V axis mm 1600 2000
Table rotary indexing-B axis ° 360 360
Travel speed of table X mm/min 0.5-6000 0.5-6000
Tool magazine pcs 40/60 40/60
TK65 CNC Planer type boring and milling machine:
Item Unit TK6511 TK6513 TK6516
Spindle diameter mm 110 130 160
Spindle taper   ISO 50 ISO 50 ISO 50
Max. spindle speed rpm 10-2000 2-2000 2-1500
Motor power-Servo KW 17/22.5 22/30 30/40
Table loading capacity Kg 6000 10000 20000
Table size mm 1200*1400
1400*1600
1400*1600
1600*1800
1400*1600
1600*1800
1800*2000
Cross travel of table -X axis mm 2000(op: 3m, 4m) 2000(op: 4m, 5m) 2500(op: 4m,5m)
Vertical travel of spindle head stock-Y axis mm 1500(op: 2m, 3m) 2000(op: 3m, 4m) 2000(op: 3m, 4m)
Longitude travel of spindle-Z axis mm 600 800 1000
Travel of column-V axis mm 1200 1600 1600
Table rotary indexing-B axis ° 360 360 360
Travel speed of table X mm/min 5000 0.5-6000 0.5-6000
Tool magazine pcs 40/60 40/60 40/60
TK61 CNC Table type Horizontal boring and milling lathe machine:
Item Unit TK6111 TK6113
Table size mm 1250*1400 1400*1600
Spindle diameter mm 110 130
X Travel mm 1800-2000 1800-2000
Y Travel mm 1200-1600 1200-1600
Z Travel mm 1200-1600 1200-2000
W Travel mm 600 800
T Slot mm(W*Distance) 22*125 22*125
Max.loading capacity KG 5000 8000
Max.boring dia. mm 240/250 300
Rapid moving speed Mm/min 3000 3000
CNC System mm SIEMENS / FANUC
Positioning accuracy(X/Y/Z axis) mm 0.03/0.03/0.03 0.03/0.03/0.03
Machine size mm 6300*3900*3700 6500*4200*3900
Machine weight KG 25000 32000



Henan Baishun Machinery Equipment Co., Ltd is a leading expert in manufacturing top-of-the-line CNC floor-type, planer-type, and gantry-type boring-milling machines. Our advanced machinery serves industries worldwide, including nuclear power, wind energy, hydropower, and forging and pressing equipment, among others.

Dedicated to excellence, we leverage our industry expertise and resources to specialize in the development and innovation of boring machines. Our commitment to research and development has positioned us as leaders in designing, developing, and manufacturing CNC and digital readout boring machines. We proudly hold ISO9001 quality certification and European quality standards, ensuring that our products meet the highest international benchmarks.

Experience the precision and reliability of Henan Baishun’s machinery, where cutting-edge technology meets unparalleled expertise.



Cnc Boring Milling Machine Supplier Vertical Universal Milling Machine 1Cnc Boring Milling Machine Supplier Vertical Universal Milling Machine 2



FAQ

1. How can I select the ideal machine for my needs?
A: Choose the perfect model yourself, or simply share your specifications with us, and we’ll recommend the best fit. You can also send us your product drawings, and our experts will select the most suitable machine for you.



2. What is the delivery timeframe?
A: Delivery times vary based on the machine and model selected, typically ranging from 2 to 4 months. For precise delivery details, feel free to contact us directly. Our state-of-the-art manufacturing facility ensures high-quality production with a global market focus.



3. Do you offer quality assurance and comprehensive after-sales support?
A: Absolutely! Our machines come with a 12-month warranty, and we offer on-site installation if needed. We also provide commissioning, technical guidance, and ongoing after-sales maintenance support.



4. What are the payment terms?
A: We require a 30% down payment upon order, with the remaining 70% due before shipment.



5. What is the minimum order quantity (MOQ)?
A: The MOQ is 1 set, though some lower-cost machines may have a higher MOQ.



6. Can you elaborate on the warranty?
A: Our machines are backed by a 12-month warranty. We offer on-site installation, commissioning, technical guidance, and after-sales support to ensure your satisfaction.



7. If I encounter setup or operational issues, can I get assistance?
A: Yes! We provide video technical support and online service, with responses available within 24 hours to help resolve any issues you may face.
