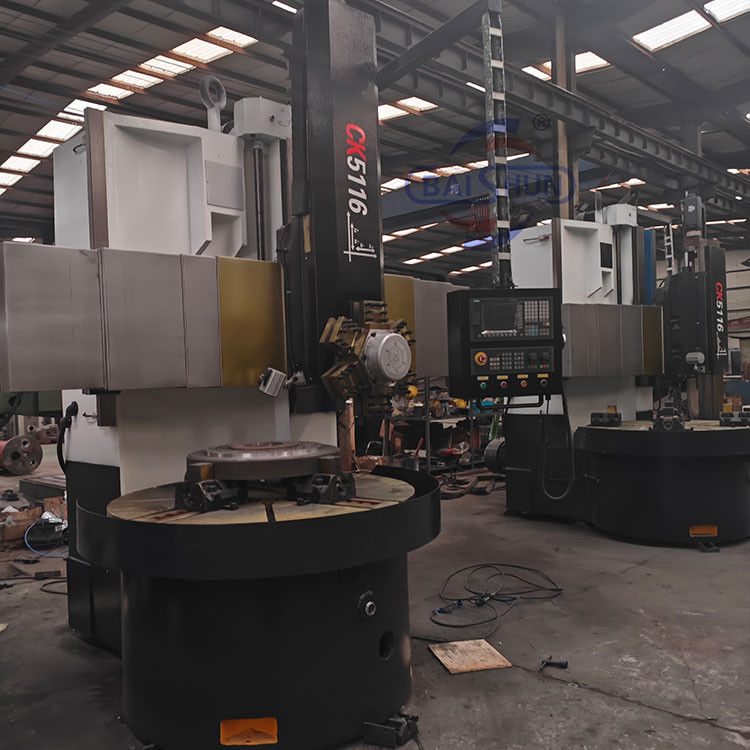

CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine

CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5117

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Metal Cutting CNC Vertical Lathe Machine

,

Single Column CNC Vertical Lathe Machine

,

Cast Iron CNC Vertical Lathe Machine

Product Name:
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
Machine Type:
CK5117
Max. Turning Diameter(mm):
1700
Max. Height Of Workpiece(mm):
1200
Worktable Size(mm):
1400
Max.weight Of Workpiece:
5tons
No. Of Spindles:
Single
Voltage:
380V
Key Words:
Vertical Turning Lathe
Function:
Metal Turning
Product Name:
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine
Machine Type:
CK5117
Max. Turning Diameter(mm):
1700
Max. Height Of Workpiece(mm):
1200
Worktable Size(mm):
1400
Max.weight Of Workpiece:
5tons
No. Of Spindles:
Single
Voltage:
380V
Key Words:
Vertical Turning Lathe
Function:
Metal Turning
CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine

CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine

Our hot selling CNC Vertical Turning Lathe is perfect for processing ferrous metals, nonferrous metals, and some non-metallic materials. It can handle tasks such as turning end faces, inner and outer cylindrical surfaces, inner and outer circular conical surfaces, as well as hole drilling, expanding, and reaming. The main transmission is driven by an AC servo motor, and the machine offers hydraulic gear shifting and stepless speed regulation with two gears. The worktable is equipped with a manual 4-jaw single movement chuck for easy operation.

CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine 0

Main Features:

1). It is mostly used to process middle-diameter tire mould and flanges, various valves and pipelines, pressure vessels, screw propeller, steamer machine accessories , plastic mould, shafts and other work-piece .

2). It is suitable for processing the internal/external cylindrical surface, conical surface, end face etc
3). Spindle bearings use domestic famous-brand company products.
4). Head stock takes symmetrical structure to make thermal deformation be even, avoiding the spindle center generates offsets.
5). Gears in head stock and guide way are processed by quenching to ensure accurate transmission and high rigidity.
6). Vertical lathe table inlaids with zinc alloy wear-resistant guide guard and can access pressure oil (0.2-0.4MPA) between the rails for improving load-carrying ability of workbench.



Machine parameter

Model

CK518

CK5112Q

CK5112A

CK5116Q

CK5120A

CK5126A

Max. turning diameter of vertical tool rest (mm)

800

1200

1200

1600

2000

2600

Working table diameter (mm)

700

1000

1000

1400

1800

2200

Max. height of work-piece (mm)

800

1000

1000

1200

1250

1400

Max. weight of work-piece (kg)

1500

1500

3200

3200

8000

8000

Range of worktable rotation speed (rpm)

30-260

20-180

6.3-200

15-160

3.2-100

2.2-70

Feeding series

Stepless

Stepless

Stepless

Stepless

Stepless

Stepless

Range of tool rest feed (mm/min)

0.25-90

0.25-90

0.8-86

0.25-90

0.8-86

0.8-86

Cross beam travel (mm)

500

1000

650

1200

890

1090

Horizontal travel of tool rest (mm)

500

700

700

900

1115

1400

Vertical travel of tool rest (mm)

450

500

650

750

800

800

Size of section of cutter bar (mm)

30*40

30*40

30*40

30*40

30*40

30*40

Main motor power (kw)

11

15

22

15

30

30



Detail Machine Photo:

CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine 1

CK5117 CNC Single Column Vertical Turret Lathe Cast Iron Metal Cutting Machine 2

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel/Whatsapp:+86 18003851898 (Miss Dora)
