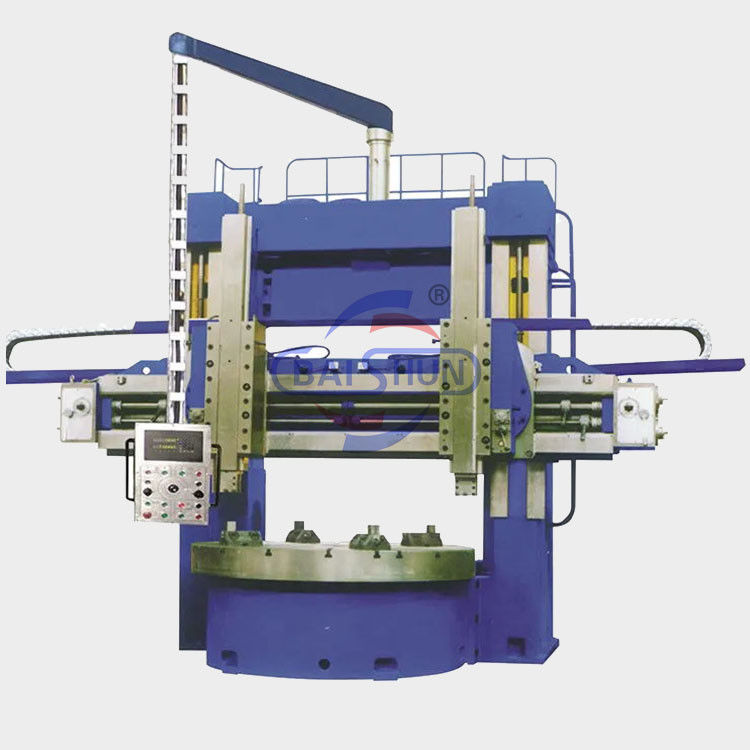

Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality

Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE，ISO

Model Number: CK5225

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $66,000.00/sets 1-4 sets

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.
2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 45 Working days

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Cnc Double Columns Vertical Turret Lathe

,

CNC Manual Control Vertical Turret Lathe

Max. Length Of Workpiece (mm):
2500
No. Of Spindles:
Double
Machining Capacity:
Heavy Duty
Control:
CNC/Manual
Max. Weight Of Work piece:
20TON
Spindle Motor Power(kW):
55
Worktable Diameter:
2250
Rapid Traverse Of Rail Head:
4000 Mm/min
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Max. Length Of Workpiece (mm):
2500
No. Of Spindles:
Double
Machining Capacity:
Heavy Duty
Control:
CNC/Manual
Max. Weight Of Work piece:
20TON
Spindle Motor Power(kW):
55
Worktable Diameter:
2250
Rapid Traverse Of Rail Head:
4000 Mm/min
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality

Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality 0



Best Cnc Double Columns Vertical Turret Lathe Max Load Capacity New Design Good Quality



This machine is ideal for high-speed steel and alloy cutting tools, as well as hardware for ferrous metals, nonferrous metals, and some non-metallic parts. It handles internal and external cylindrical surfaces, end faces, grooving, and rough finish machining.



The beam is positioned in front of the column, allowing vertical movement along the column guide rail. A lifting box on the upper part of the column, driven by an AC motor, uses a worm pair and lead screw to move the beam up and down. All large components are made of high-strength, low-stress cast iron HT250, which undergoes aging treatment to eliminate stress and ensure machine tool accuracy.





Machine parameter

Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps   16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520



Product photos

Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality 1



ELECTRIC SYSTEM
All machine control components such as contractors are installed in the power distribution cabinet. All the operating components are centrally mounted on the hanging button station. Machine electrical system and mechanical action set many chains, to ensure the machine control and mechanical movement of the reliability, safety, in the event of failure, just press the emergency button, the whole equipment power.



HYDRAULIC STATION
table static pressure system, the main transmission system, cross-beam clamping system, vertical turret ram hydraulic balance system. Static pressure system table by the oil pump, the static pressure oil is allocated to each oil pool, table height by adjusting the reach of 0.06-0.15mm. Hydraulic device pressure protection, such as the use of pressure will automatically shut down.

Cnc Double Columns Vertical Turret Lathe Max Load Capacity Good Quality 2

Contact

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel:+86 18003851898
