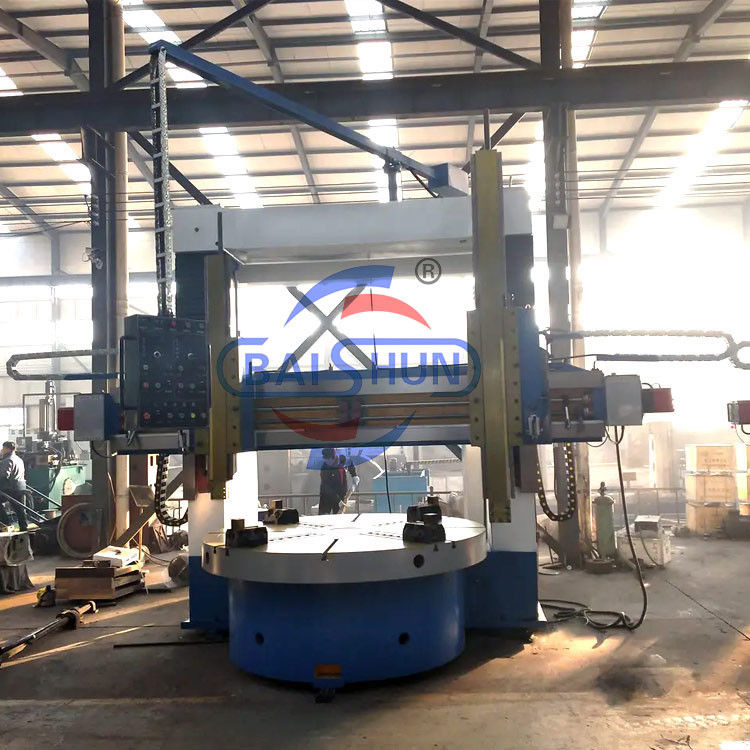

Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens

Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE，ISO

Model Number: CK5225

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $66,000.00/sets 1-4 sets

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.
2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 45 Working days

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Big Travel Double Column Vertical Lathe

,

Siemens Double Column Vertical Lathe

Max. Length Of Workpiece (mm):
2500
No. Of Spindles:
Double
Machining Capacity:
Heavy Duty
Control:
CNC/Manual
Max. Weight Of Work piece:
20TON
Spindle Motor Power(kW):
55
Worktable Diameter:
2250
Rapid Traverse Of Rail Head:
4000 Mm/min
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Max. Length Of Workpiece (mm):
2500
No. Of Spindles:
Double
Machining Capacity:
Heavy Duty
Control:
CNC/Manual
Max. Weight Of Work piece:
20TON
Spindle Motor Power(kW):
55
Worktable Diameter:
2250
Rapid Traverse Of Rail Head:
4000 Mm/min
Positioning Accuracy (mm):
±0.005
Repeatability (X/Y/Z) (mm):
±0.003
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens

Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens 0



Siemens System Conventional Double Column Vertical Lathe Factory Price Big Travel Fanuc System Cnc Rotary Table



CNC Vertical lathe is a kind of large mechanical equipment, which is used to process large and heavy work pieces with large radial size and relatively small axial size and complex shape. Such as a cylindrical surface, an end surface, a conical surface, a cylindrical hole, a conical hole and the like of various discs, wheels and sleeve work pieces, and can also be processed by means of additional devices such as running threads, spherical surface turning, imitating machining, grinding and the like; compared with a horizontal lathe, the work pieces are clamped in the clamping decoration of the horizontal lathe, while the main shaft axis of a vertical lathe is in a vertical layout, and the table surface of a worktable is in a horizontal plane; Therefore, the clamping and alignment of the work piece are more convenient. This arrangement reduces the load on the spindle and bearings, so the vertical lathe can maintain its working accuracy for a long time.


* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.



Machine parameter

Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps   16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520



Product photos
Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens 1



CNC double column vertical lathe, for my company introduces the advanced technology at home and abroad, and the design was optimized by using CAD software, implement precision of the latest national standards and safety standards, configuration of advanced and reliable mechanical and electrical components, structure performance is outstanding, strong rigidity, machine tool can meet the strong cutting, worktable can carry large tonnage load, good stability, high efficiency, safe and reliable.



Conventional Double Column Vertical Lathe Big Travel Cnc Rotary Table Siemens 2
