Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover
Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover
Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover
Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover
Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover
Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover

Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5116

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package or Negotiation with customers

Delivery Time: 45 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Automatic Vertical Turning Center

,

Cnc Lathe Machine Price

,

Single Column Vertical Turning Center

Product Name:
Cnc Lathe Machine Price Single Column With Protection Cover
Machine Type:
CK5116
Max. Turning Diameter(mm):
1600
Max. Height Of Workpiece(mm):
1200
Worktable Size(mm):
1400
Max.weight Of Workpiece:
3.2tons
No. Of Spindles:
Single
Voltage:
380V
Key Words:
Vertical Turning Center
Function:
Metal Turning
Product Name:
Cnc Lathe Machine Price Single Column With Protection Cover
Machine Type:
CK5116
Max. Turning Diameter(mm):
1600
Max. Height Of Workpiece(mm):
1200
Worktable Size(mm):
1400
Max.weight Of Workpiece:
3.2tons
No. Of Spindles:
Single
Voltage:
380V
Key Words:
Vertical Turning Center
Function:
Metal Turning
Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover

Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover

China Hot sale Multi-purpose CNC Vertical Turning Lathe is suitable to process ferrous metal, nonferrous metals and partial non-metallic material, and could achieve the processing of turning of the end face, inside and outside cylindrical surface, inside and outside circular conical surface and drilling, expanding, reaming of hole. Main transmission is driven by the spindle AC servo motor, hydraulic gear change and two gears step less speed regulation. Worktable is manual 4-jaw single movement chuck.

xCnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover 0

Key Features:

1. Our CNC vertical lathe is equipped with the Siemens 828DD system, ensuring precise control. It features a vertical tool post, allowing for a maximum machining diameter of 1600mm, a table diameter of 1400mm, and a maximum machining height of 1000mm.

2. The transmission device adopts a four-speed continuous transmission, providing convenience, sensitivity, and reliability.

3. All gears in the system are made of 40Cr grinding gears, guaranteeing high rotation accuracy and minimal noise.

4. This machine is suitable for processing non-ferrous metals, black metals, and non-metallic materials using high-speed steel tools and carbide cutting tools. It can perform various operations, including turning inner and outer cylindrical surfaces, cutting different types of faces (such as hooks), inner and outer conical surfaces, threading, as well as slotting and cutting.





Machine parameter

Model

CK518

CK5112Q

CK5112A

CK5116Q

CK5120A

CK5126A

Max. turning diameter of vertical tool rest (mm)

800

1200

1200

1600

2000

2600

Working table diameter (mm)

700

1000

1000

1400

1800

2200

Max. height of work-piece (mm)

800

1000

1000

1200

1250

1400

Max. weight of work-piece (kg)

1500

1500

3200

3200

8000

8000

Range of worktable rotation speed (rpm)

30-260

20-180

6.3-200

15-160

3.2-100

2.2-70

Feeding series

Stepless

Stepless

Stepless

Stepless

Stepless

Stepless

Range of tool rest feed (mm/min)

0.25-90

0.25-90

0.8-86

0.25-90

0.8-86

0.8-86

Cross beam travel (mm)

500

1000

650

1200

890

1090

Horizontal travel of tool rest (mm)

500

700

700

900

1115

1400

Vertical travel of tool rest (mm)

450

500

650

750

800

800

Size of section of cutter bar (mm)

30*40

30*40

30*40

30*40

30*40

30*40

Main motor power (kw)

11

15

22

15

30

30



Detail Machine Photo:

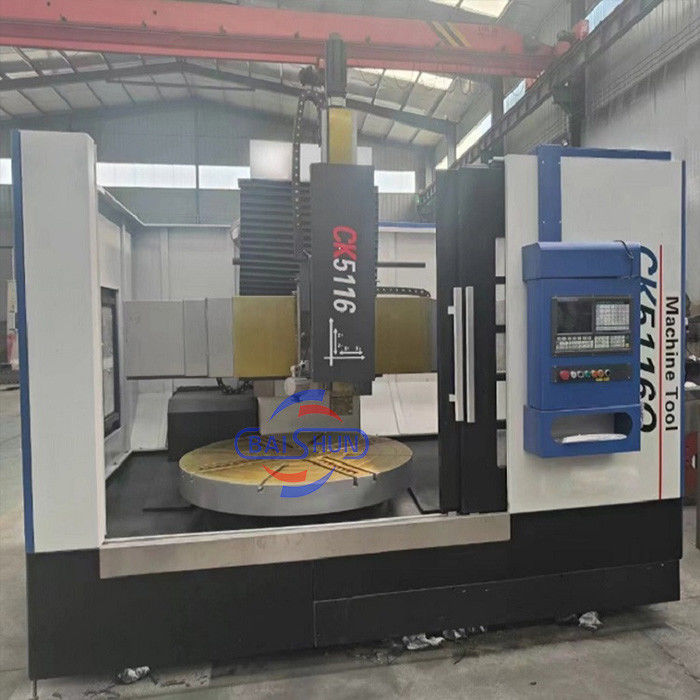

Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover 1

Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover 2





Shipping and Delivering:

Cnc Lathe Machine Price Single Column Automatic Vertical Turning Center With Protection Cover 3

We are a direct-sale lathe machine manufacturer, not a trading company,
which means we can offer you the best prices.

Welcome get in touch with us:)
Tel/Whatsapp:+86 18003851898 (Miss Dora)
