Cnc Lathes Machine Heavy Duty CK5125 Lathe Mill Combo Vertical Cnc Lathe Machine:
Single column vertical lathe, equipped with advanced and dependable mechanical and electrical components, exhibits exceptional structural performance, strong rigidity, and the ability to handle heavy cutting tasks. The worktable is capable of carrying large tonnage loads, ensuring stability, efficiency, and reliable operation.
Vertical lathe is a large-scale mechanical equipment specifically designed for processing large and heavy workpieces with a significant radial size, relatively small axial size, and complex shapes. It excels in tasks such as machining cylindrical surfaces, end faces, conical surfaces, cylindrical holes, conical holes, and more.
Vertical lathe is widely applicable in the field of mechanical processing and can be used for both internal and external cylindrical and conical surfaces, as well as for facing, cutting, and other coarse and fine turning processes. The workbench adopts a hydrostatic guideway, and the main shaft is equipped with high-precision NN30 type (D) double row cylindrical roller bearings, ensuring a large carrying capacity and high rotary precision. The electrical components of the machine tool are sourced from reputable domestic brands, ensuring high reliability. The machine itself is manufactured using a high-quality EPC process, undergoing annealing aging treatment, resulting in a beautiful and durable appearance. It is user-friendly, easy to operate and maintain, and offers excellent cost performance. The design features an integrated hanging button station, electric cabinet, and bed. It also includes a quenched beam, T-shaped ram with five-hole turret, closed beam protection, and automatic lubrication for all lubrication points. Additionally, it offers a constant line speed for turning and threading operations.
BAISHUN has strong technical force, the advanced production equipment, and the perfect administration system. Our productions have good quality, advanced technology.These single & double column lathe and NC vertical lathe have gained perfect praise by consumers since put into market.
Machine parameter
|
Model
|
CK518
|
CK5112Q
|
CK5112A
|
CK5116Q
|
CK5120A
|
CK5126A
|
|
Max. turning diameter of vertical tool rest (mm)
|
800
|
1200
|
1200
|
1600
|
2000
|
2600
|
|
Working table diameter (mm)
|
700
|
1000
|
1000
|
1400
|
1800
|
2200
|
|
Max. height of work-piece (mm)
|
800
|
1000
|
1000
|
1200
|
1250
|
1400
|
|
Max. weight of work-piece (kg)
|
1500
|
1500
|
3200
|
3200
|
8000
|
8000
|
|
Range of worktable rotation speed (rpm)
|
30-260
|
20-180
|
6.3-200
|
15-160
|
3.2-100
|
2.2-70
|
|
Feeding series
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
Stepless
|
|
Range of tool rest feed (mm/min)
|
0.25-90
|
0.25-90
|
0.8-86
|
0.25-90
|
0.8-86
|
0.8-86
|
|
Cross beam travel (mm)
|
500
|
1000
|
650
|
1200
|
890
|
1090
|
|
Horizontal travel of tool rest (mm)
|
500
|
700
|
700
|
900
|
1115
|
1400
|
|
Vertical travel of tool rest (mm)
|
450
|
500
|
650
|
750
|
800
|
800
|
|
Size of section of cutter bar (mm)
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
30*40
|
|
Main motor power (kw)
|
11
|
15
|
22
|
15
|
30
|
30
|

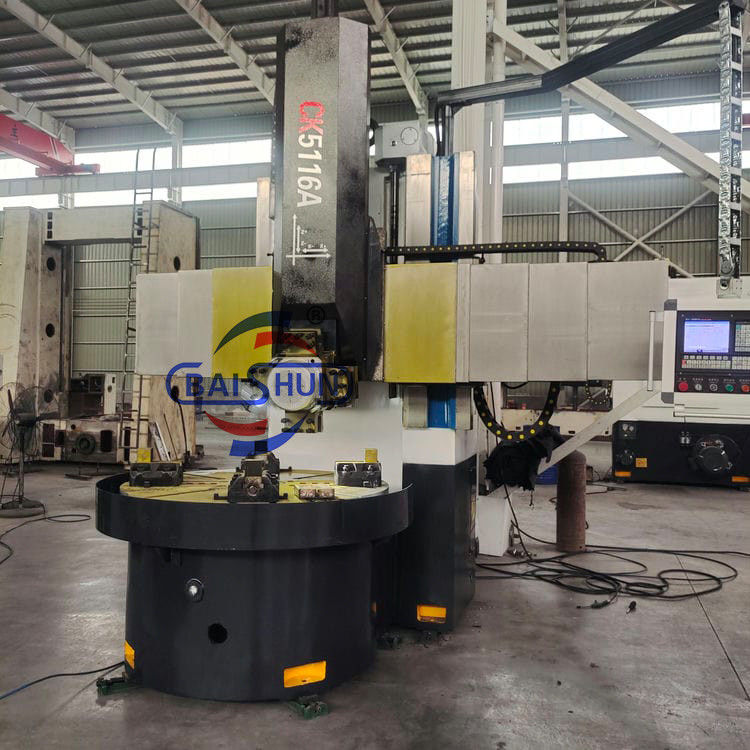

Detail Machine Photo:
