Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine

Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine

Product Details

Place of Origin: China

Brand Name: Baishun

Certification: ISO

Model Number: BK5018

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 20 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 100Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Vertical Slot Making Machine

,

Keyway CNC Slot Making Machine

Name:
Machine Tool Planer Slotter Equipment
Model:
BK5018
Automatic:
CNC Type
Max.length Of Ram:
180mm
Functioin:
Metal Slotting
Controller:
PLC
Voltage:
380v/50hz Or As Customer Required
Warranty:
1 Year
Power (kW):
3.7
Weight (KG):
2000 KG
Name:
Machine Tool Planer Slotter Equipment
Model:
BK5018
Automatic:
CNC Type
Max.length Of Ram:
180mm
Functioin:
Metal Slotting
Controller:
PLC
Voltage:
380v/50hz Or As Customer Required
Warranty:
1 Year
Power (kW):
3.7
Weight (KG):
2000 KG
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine

Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine

This CNC Slot machines are used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold and other within the scope of etc. work matter,Enterprise suitable for single or small batch production.



The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.

Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter.
2. Enterprise suitable for single or small batch production.

Product main technical parameters:

Item Unit BK5018 BK5030 BK5032 BK5040
Max. length of ram mm 180 300 320 400
Ram adjustment stroke mm 80 300 315 315
Number of ram movements n/min 30/120 30~150 20~80 20~80
Working desk size mm 600*320 550*405 800*610 800*610
X direction motor torque N.M 6 6 7.7 7.7
Z direction motor torque N.M 6 6 7.7 7.7
Main motor power kw 3.7 3.7 4 4
Machine weight kg 2000 2800 3700 3700
Package dimension mm 2200*2100*2300 2300*2200*2300 2800*2400*2500 2800*2400*2500

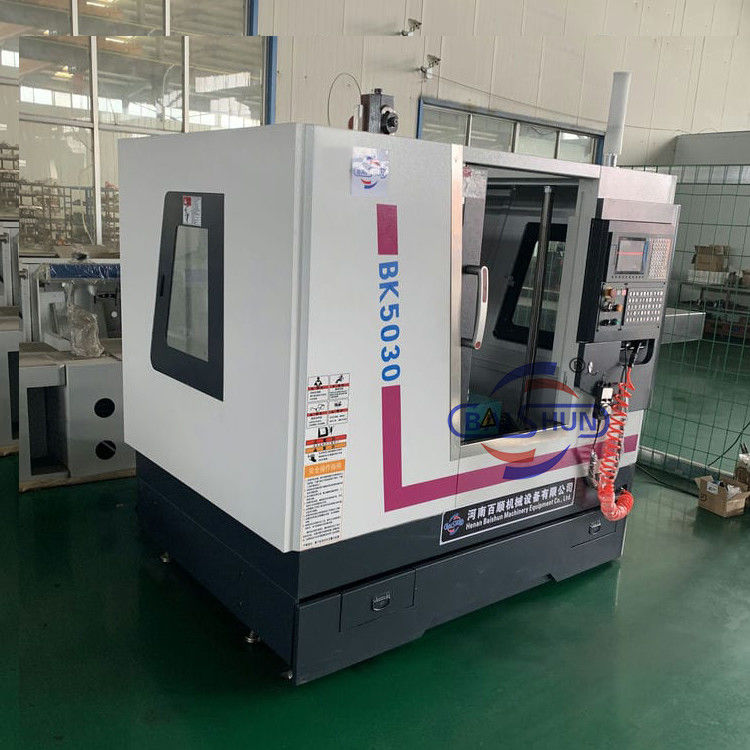

Machine picture:


Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine 0
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine 1
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine 2


For more detail specification please contact:
Keyway CNC Vertical Slot Making Machine Automatic BK5040 BK5050 Slotting Machine 3
