B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control

B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control

Product Details

Place of Origin: China

Brand Name: Baishun

Certification: ISO

Model Number: B5040

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 20 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 100Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Vertical Metal Shaping Machine

,

PLC Control Metal Shaping Machine

,

PLC Control Vertical Slotting Machine

Name:
Machine Tool Planer Slotter Equipment
Model:
B5040
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Functioin:
Metal Slotting
Controller:
PLC
Voltage:
380v/50hz Or As Customer Required
Warranty:
1 Year
Power (kW):
4
Weight (KG):
3700 KG
Name:
Machine Tool Planer Slotter Equipment
Model:
B5040
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Functioin:
Metal Slotting
Controller:
PLC
Voltage:
380v/50hz Or As Customer Required
Warranty:
1 Year
Power (kW):
4
Weight (KG):
3700 KG
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control

B5040 Vertical Slotting Machine Metal Shaping Machine Tool Planer Slotter Equipment

The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.

Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter.
2. Enterprise suitable for single or small batch production.

Product main technical parameters:
Specification Unit B5020 B5032 B5040
Max. stroke of RAM mm 220 340 400
Ram maximum slotting length mm 200 320 500
Ram motion frequency times/min 32.50.80.125 20.32.50.80 20.32.50.80
Ram tilt angle ° 0-8 0-8 0-8
Ram vertical adjustment distance mm 230 315 315
Cutter head bearing surface to the distance between the forearm bed mm 485 600 600
Table Diameter mm 500 630 630

The distance between the lower end of the sliding frame to work table

 mm 320 490 600
Max. longitudinal moving distance of working table mm 500 630 690
Max. transverse moving distance of working table mm 500 560 620
Table maximum rotation angle ° 360 360 560
Vertical and horizontal table power feed range mm 0.08-1.21 0.08-1.21 0.08-1.21
Table rotary feed range mm 0.052-0.783 0.052-0.783 0.052-0.783
Motor power kw 3 4 4
Motor speed r/min 1430 960 960
Machine weight kg 2200 3000 3700
Outline dimension mm 1916*1305*1995 2261*1495*2245 2290*1525*2485

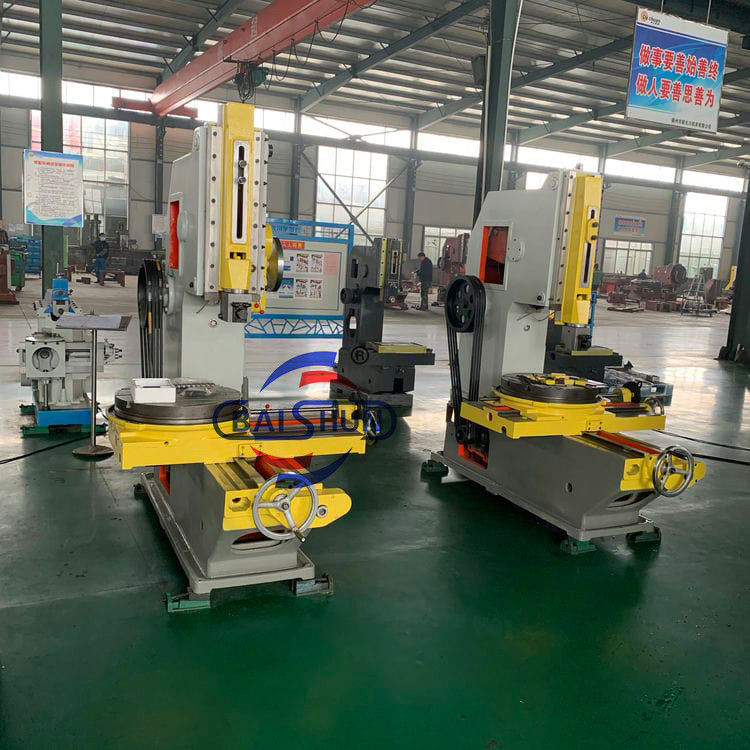

Machine picture:

B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control 0
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control 1
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control 2
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control 3
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control 4

For more detail specification please contact:
B5040 Vertical Metal Shaping Machine Tool Planer Slotter Equipment PLC Control 5
