Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine

Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine

Product Details

Place of Origin: China

Brand Name: Baishun

Certification: ISO

Model Number: B5032

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 20 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 100Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Keyway Shaper Slotter

,

Heavy Duty Shaper Slotter

Name:
B5032 Metal Slot Shaping Machine
Model:
B5032
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Functioin:
Metal Slotting
Controller:
PLC
Voltage:
380v/50hz Or As Customer Required
Warranty:
1 Year
Power (kW):
4
Weight (KG):
3000 KG
Name:
B5032 Metal Slot Shaping Machine
Model:
B5032
Video Outgoing-inspection:
Provided
Machinery Test Report:
Provided
Functioin:
Metal Slotting
Controller:
PLC
Voltage:
380v/50hz Or As Customer Required
Warranty:
1 Year
Power (kW):
4
Weight (KG):
3000 KG
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine

Keyway Shaper Slotting Machine Heavy Duty B5032 Metal Slot Shaping Machine

The main performance characteristics:
1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary),
therefore work object go through once clamping, Several surfaces in the machine tool machining
2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.
3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted
continuously.
4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer,
Even there single motor drive vertical, horizontal and rotary fast moving.
5.Use hydraulic feed the slotting machine, Is when the work is over turning back instantaneous feed, Therefore be better than
mechanical slotting machine used drum wheel feed.

Application:
1. This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10° Mold
and other within the scope of etc. work matter.
2. Enterprise suitable for single or small batch production.

Product main technical parameters:
SpecificationUnitB5020B5032B5040
Max. stroke of RAMmm220340400
Ram maximum slotting lengthmm200320500
Ram motion frequencytimes/min32.50.80.12520.32.50.8020.32.50.80
Ram tilt angle°0-80-80-8
Ram vertical adjustment distancemm230315315
Cutter head bearing surface to the distance between the forearm bedmm485600600
Table Diametermm500630630

The distance between the lower end of the sliding frame to work table

mm320490600
Max. longitudinal moving distance of working tablemm500630690
Max. transverse moving distance of working tablemm500560620
Table maximum rotation angle°360360560
Vertical and horizontal table power feed rangemm0.08-1.210.08-1.210.08-1.21
Table rotary feed rangemm0.052-0.7830.052-0.7830.052-0.783
Motor powerkw344
Motor speedr/min1430960960
Machine weightkg220030003700
Outline dimensionmm1916*1305*19952261*1495*22452290*1525*2485

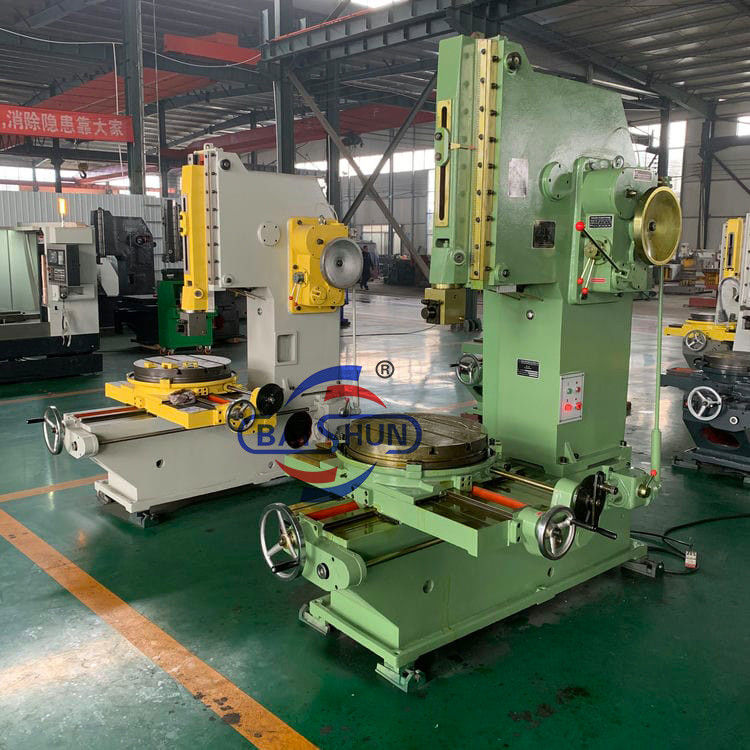

Machine picture:
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine 0
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine 1
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine 2

For more detail specification please contact:
Keyway Shaper Slotter Machine Heavy Duty B5032 Metal Slot Shaping Machine 3
