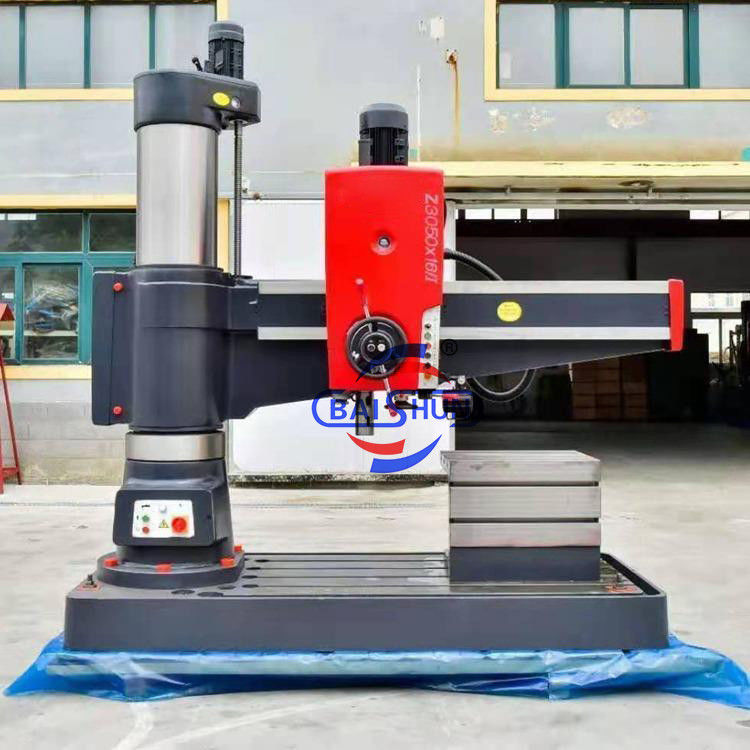

Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling

Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling

Product Details

Place of Origin: CHINA

Brand Name: BAISHUN

Certification: ISO

Model Number: Z3040

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: Export standard wooden case package

Delivery Time: 20-25 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Set per Month

Get Best Price

Product Details

Product Description
Highlight:

Hydraulic Radial Drill Machine

,

Vertical Radial Drill Machine

Product Name:
Deep Hole Drilling
Max Drilling Diameter:
40mm
Spindle Travel(mm):
260mm
Radial Ratation Angle:
360°
Precision:
Accuracy
Main Motor:
2.2Kw
Power Supply:
220V/380V/415V
Function:
Tapping Holes
Spindle Taper:
Morse Taper 4
Color:
Green And Red
Product Name:
Deep Hole Drilling
Max Drilling Diameter:
40mm
Spindle Travel(mm):
260mm
Radial Ratation Angle:
360°
Precision:
Accuracy
Main Motor:
2.2Kw
Power Supply:
220V/380V/415V
Function:
Tapping Holes
Spindle Taper:
Morse Taper 4
Color:
Green And Red
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling
Product Overview



Automatic Feed Drilling Machine Z3050*16 Radial Drill Machine

Radial drilling machine is a kind of hole processing equipment, which can be used for drilling, reaming, reaming, tapping, end face repair and other forms of processing. Tradial drilling machine is with extensive use of universal machine, suitable for in machinery manufacturing departments in the processing of small parts, drilling, reaming, reaming, countersink flat and tapping. In process equipment conditions, can also be used for boring.According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among all kinds of drilling machines, radial drilling machines are easy to operate, flexible, widely applicable and typical, especially suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general machining workshops.


1. Gather mechanical-electrical-hydraulic functions, use extensively.

2. With wide range of speed and feed, with manual,power and fine feeds.

3. The feed of machines are very easily engaged and disengaged at any time.

4. With safety and reliable feed safety machine, all parts easy operation and change.

5. All controls centralized on the head stock easy operation and change.

6. Clamping for assemblies and speed change of spindle achieved by hydraulic power.

7. The Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.

8. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.

9. Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.

10. Main gears are all precision grind, ensuring high precision and low noise.



Product Parameters
Specification
Z3032X10
Z3040X14
Z3050X16
Z3063X18
Z3080X20
Max drilling diameter (mm)
32
40
50
63
80
Distance between spindle axis and coulumn(mm)
170-1100
260-1210
350-1500
400-1600
550-1600
Spindle travel(mm)
120
260
350
400
450
Spindle taper(morse)
MT4
MT4
MT5
MT6
MT6
Number of spindle speeds
6
12
12
16
16
Steps of spindle feeds
3
3
4
16
16
Radial ratation angle
360
360
360
180
180
Main motor (kw)
1.5
2.2
4
5.5
7.5



Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling 0



Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling 1

Why Choose Us?

Baishun machinery is professional machine tool manufacturer in China Mainland, we have more than 30 year experience in product design and manufacture, we always follow the best Technology design & manufacture idea in our products, try our best to provide our customer the most cost-effective machine tool and accessories.

Hydraulic Radial Drill Machine Vertical Driller Metal Deep Hole Drilling 2
