Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw

Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw

Product Details

Place of Origin: China

Brand Name: BAISHUN

Certification: ISO

Model Number: BC6050

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiation

Packaging Details: Export standard wooden case package

Delivery Time: 20 working days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 150set per month

Get Best Price

Product Details

Product Description
Highlight:

Mechanical Metal Shaping Machine

,

Auto Feed Metal Shaping Machine

Name:
Mechanical Metal Shaping Machine Tool Price
Model:
BC6050
Precision:
High Precison
Automatic Grade:
Manual
Style:
Small Type
Max.cutting Length:
500mm
Travel Of Tool Head:
110mm
Main Power:
3kw
Color:
Green
Packing:
Negotiation
Name:
Mechanical Metal Shaping Machine Tool Price
Model:
BC6050
Precision:
High Precison
Automatic Grade:
Manual
Style:
Small Type
Max.cutting Length:
500mm
Travel Of Tool Head:
110mm
Main Power:
3kw
Color:
Green
Packing:
Negotiation
Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw

Fast Feed Metal Shaper Cutter Metal Shaping Machine

Auto Feed BC6050 Mechanical Metal Shaping Machine Tool Price

Description:
Metal shaper is mainly used for planning the plane on the small and medium-size workpieces in small batch production of a single piece, forming the surface and grooves.Also could manually feeding. the workbench takes along the work pieces making the intermittent horizontal or vertical feed movement.



Main Machine Features:
1. Planner bench can turing angle of the table with horizontal and lift moving mechanism; For planning the inclined plane, thereby expanding the scope of use.
2. Planner feed system uses a cam mechanism to adjust the feed rate. It is very convenient to change the feeding rate.
3. Planer equipped with cutting system overload safety angencies. Once occur careless operation, external influences or cutting overload, it will shift to self-skid, and non-sestructive the machine.
4. Gap between the ran and the bed rail, the speed gear and the main sliding guide surface, will be lubricated by the pump shot oil.
5. Planner is equipped with a clutch and parking brake device. So do not need to cut off the power when changing the speed, stard the machine or braking the machine.



Advantage:

1. Optimized principle design, machine appearance, easy to operate.
2. Vertical, horizontal guide surface with rectangular guide, better stability.
3. The use of advanced ultra-audio quenching process, so that the machine life longer.
4. Suitable for planing various small and medium parts of the plane, T-slot and molding surface, can be used for single and batch production.



Specification:

Specification BC635A BC6050 BC6063 BC6070 BC60100
Max. cutting length 350mm 500mm 630mm 700mm 1000mm
Max. horizontal travel of table 400mm 500mm 630mm 630mm 800mm
Max. distance from ram bottom to table 330mm 370mm 385mm 420mm 380mm
Max. table vertical travel 270mm 300mm 360mm 320mm 320mm
Max. vertical travel of tool carrier 110mm 110mm 120mm 125mm 160mm
Number of ram strokes per minute 32,50,80,125 15,24,37,51,64,
80,102,126,158		 14,20,28,
40,56,80		 11,20,38,
52,72		 8,11,16,23,
32,45,64,90
MOTOR POWER 1.5kw 4kw 3kw 4kw 7.5kw
Dimensions (LxWxH) mm 1390x860x1455 1943x1173x1533 2265x1225x1480 2550x1400x1760 3507x1455x1761

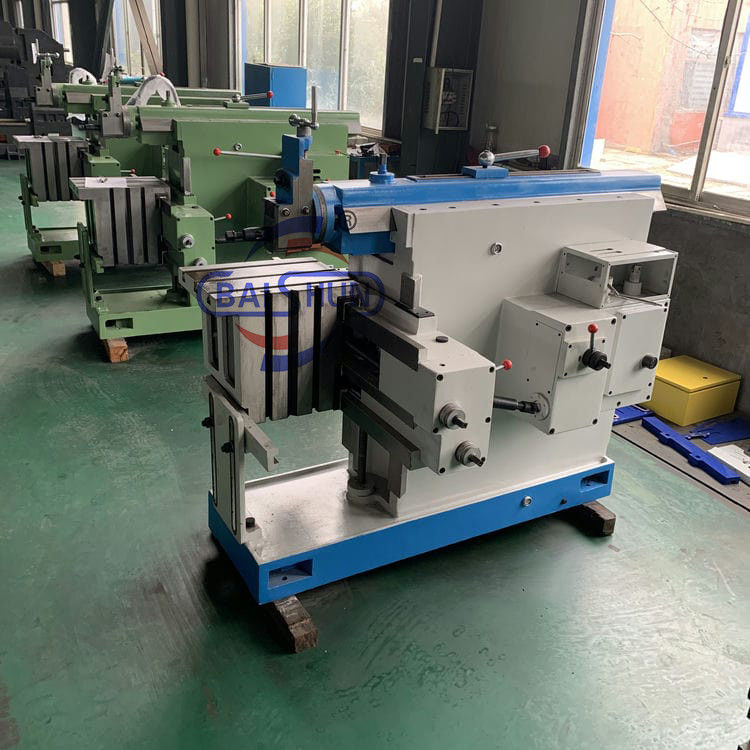

Machine Picture:



Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw 0

Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw 1Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw 2

Auto Feed BC6050 Mechanical Metal Shaping Machine Tool 3kw 3
