Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine

Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine

Product Details

Place of Origin: Henan, China

Brand Name: BAISHUN MACHINERY, BAISHUN MACHINERY

Certification: CE/ISO9001

Model Number: CK5240

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Packaging Details: 1. Outside we will pack the product with plasitic to prevent wet.2. Outside of the cnc vertical lathe machine will be packed by strong wooden pallet.

Delivery Time: 30-35 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20 Set/Sets per Month

Get Best Price

Product Details

Product Description
Highlight:

Newest Vertical Lathe Machine

,

Newest CNC Vertical Lathe Machine

Max. Length Of Workpiece (mm):
4000
Max. Spindle Speed (r.p.m):
63 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
75
No. Of Spindles:
Twin
Max. Turned Length (mm):
4000
Number Of Axes:
2
Travel (X Axis)(mm):
1250 Mm
Travel (Z Axis)(mm):
2500 Mm
Dimension(L*W*H):
690*510*480cm
Tool Post Stations:
4
Weight (KG):
55000
Product Name:
CNC Vertical Lathe
Max. Workpiece Weight::
20000kg
Max. Length Of Workpiece (mm):
4000
Max. Spindle Speed (r.p.m):
63 R.p.m
Machining Capacity:
Medium Duty
Spindle Bore(mm):
130
Width Of Bed (mm):
250 Mm
Spindle Motor Power(kW):
75
No. Of Spindles:
Twin
Max. Turned Length (mm):
4000
Number Of Axes:
2
Travel (X Axis)(mm):
1250 Mm
Travel (Z Axis)(mm):
2500 Mm
Dimension(L*W*H):
690*510*480cm
Tool Post Stations:
4
Weight (KG):
55000
Product Name:
CNC Vertical Lathe
Max. Workpiece Weight::
20000kg
Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine

Product Description



Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine


The double column vertical lathe is a cutting-edge piece of equipment that combines mechanical, electrical, and hydraulic components. It incorporates modern design principles and manufacturing techniques, leveraging CAD optimization and state-of-the-art components from both domestic and international sources. The machine boasts a robust structure, offering exceptional strength, high static and dynamic stiffness, precise machining capabilities, heavy load capacity, efficiency, durability, and reliable operation. All major technical specifications of the machine parts comply with national standards.



The machine consists of various components, including the worktable base, worktable, main transmission box, gantry frame, beam, ram tool rest, feeding box, electrical system, operation station, hydraulic system, and protection devices.



Additionally, CNC vertical lathes are highly automated and can be programmed to perform a wide range of machining operations, such as turning, drilling, boring, threading, and milling, with minimal human intervention.

Overall, The CNC vertical lathes are a versatile and efficient machining tool that offer high precision and automation capabilities, and that is why makes them an essential component of modern manufacturing processes.CNC Double Column Cnc Vertical Lathe Maquina De Torno Tornio Da Banco Tokarka



Machine parameter

Specifications Unit CK5225 CK5231 CK5240Q CK5240
Max.turning diameter mm 2500 3150 4000 4000
Max. height of work piece mm 1600/2000/2500 1600/2000/2500 1600/2000/2500 1600/2000/2500
Max. weight of work piece T 10/20 10/20 10/20 32
Worktable diameter mm 2250 2830 2830/3150 3200/3600
Range of table speeds r/min 2-63 2-63 2-63 2-63
Steps   16 16 16 16
Max torque of work table KN.m 63 63 63 100
Rapid traverse of rail head mm/min 4000 4000 4000 4000
Ram vertical travel of right railhead Kn 35 35 35 40
Ram vertical travel of left railhead kn 30 30 30 30
Range cutting force of right railhead mm/min 1-50 1-50 1-50 1-50
Range cutting force of right railhead mm/min 0.1-1000 0.1-1000 0.1-1000 0.1-1000
Travel of arm mm 1000 1000 1000 1250
Section of arm mm 255×200 255×200 255×200 240×240
Swivel of left and right railhead ° ±30° ±30° ±30° ±30°
Section of tool mm 40×50 40×50 40×50 50×50
Power of main motor Kw 55 55 55 75
Overall dimensions cm 569×470×480/520 605×440×493/533 690×510×480/520 690×510×480/520



Product photos

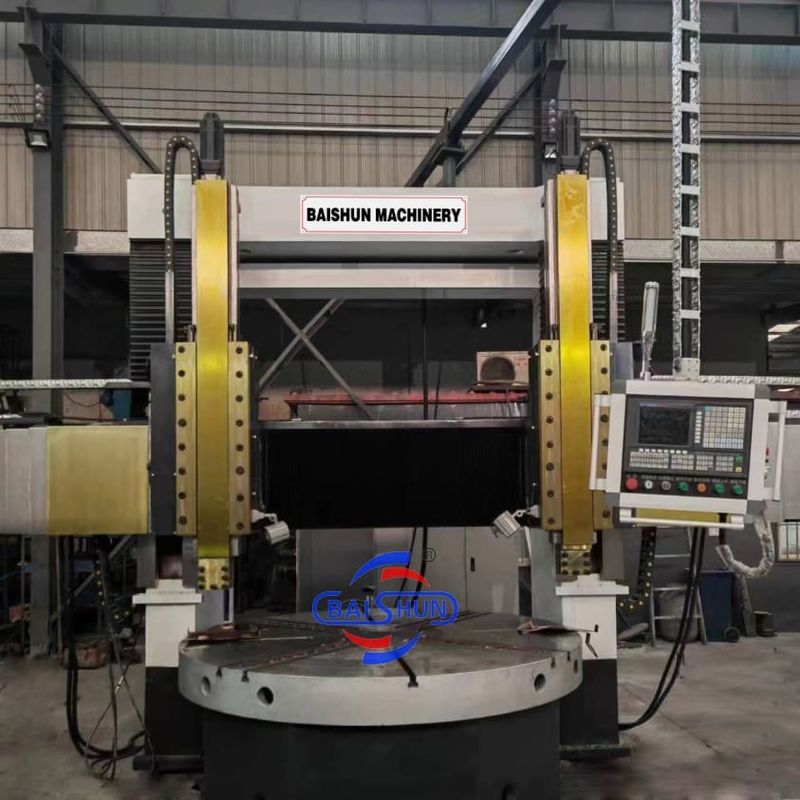

Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine 0Newest Diamond Cutting Wheel Repair Cnc Machine Tool CNC Vertical Lathe Machine 1
